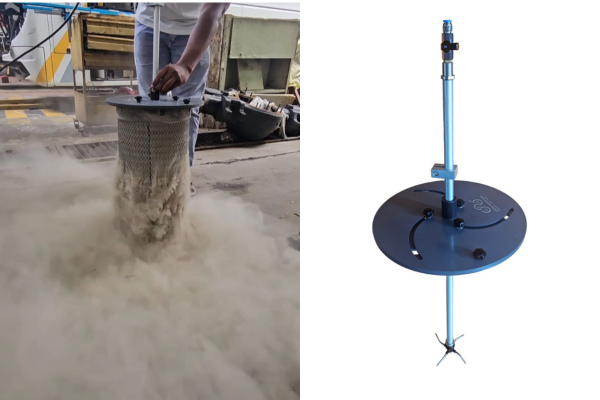

JetClean is a professionally designed air filter cleaning system for cylindrical filters. It converts high-pressure air into controlled reverse pulses, guided by a custom iris-based centering mechanism (patent filed). This ensures uniform 360° internal cleaning without damaging the pleated media. The process is dry, fast, and non-destructive — making filters ready for immediate reuse without water or chemicals.
Key Features
- Converts high-pressure air into controlled reverse pulses
- Custom iris-based centering mechanism (patent filed) for precise nozzle alignment
- Supports filter heights up to 27 inches
- Adjustable filter holder to accommodate a wide range of filter sizes
- Compact, lightweight, and portable design
- Constructed using stainless steel, ABS, and aluminum components for durability and corrosion resistance
- Optional dust collection system available for enclosed cleaning
- Truck and bus fleets
- Mining and construction equipment users
- Agriculture machinery operators
- Cement and powder processing plants
- Generator, compressor, and HVAC maintenance teams
- Gas turbine intake system operators (power & process industries)
Target User
- Extend filter life by 2x
- Save up to ₹2.2 lakh /year (10-truck fleet example )
- Improve airflow, fuel efficiency, and engine protection
- Reduce filter stock and unplanned downtime
- Clean, dry, dust-controlled operation
Benefits
Technical Specification
| Parameter | Specification |
|---|---|
| Operating Pressure | 8 – 10 bar |
| Filter Compatibility (ID) | 4″ to 12″ inner diameter |
| Filter Height Capacity | Up to 27 inches |
| Air Consumption | Approx. 400 – 600 L/min (continuous, via 8 mm input) |
| Power Source | Pneumatic (no electricity required) |
| Construction Material | Stainless steel, ABS, and aluminum |
Compressor Requirement
To maintain consistent pressure during JetClean operation, a compressor must be capable of supplying air continuously at 8–10 bar.
- Minimum: 5 HP piston compressor with 300–500 L tank (for intermittent use)
- Recommended: 5–7.5 HP screw compressor for continuous use
- Set cut-out pressure at 10 bar and cut-in pressure at 8 bar for optimal performance
